# Relationships

**Week 10**

AEM 2850 / 5850 : R for Business Analytics<br>
Cornell Dyson<br>
Fall 2025

Acknowledgements:
[Andrew Heiss](https://datavizm20.classes.andrewheiss.com)

]

---

# Announcements

**Homework - Week 9** was due last night
- We posted it on posit cloud and gradescope, but not canvas
- So I have extended the deadline through this Friday, Oct 31

**Homework - Week 10** will not exist, to give time for the group project

**Homework - Week 11** will be done in class, to give time for the group project

**Group projects** are due Friday, November 14
- Make a plan and start early!

Questions before we get started?

---

# Plan for this week

[Visualizing relationships between a numerical and a categorical variable](#correlations-categorical)

[Visualizing correlations](#correlations)

[example-10-1](#example-10-1)
]

[example-10-2](#example-10-2)
]

---
class: inverse, center, middle
name: dual-y-axes

# Prologue: The dangers of dual y-axes

---

# Oh no!

.small.center[
<figure style="padding-top: 5px;">
  <img src="img/10/spurious-correlation.svg" alt="Spurious correlation between Mount Everest climbs and hotdog consumption" title="Spurious correlation between Mount Everest climbs and hotdog consumption" width="100%">
  <figcaption>Source: <a href="https://www.tylervigen.com/spurious-correlations" target="_blank">Tyler Vigen's spurious correlations</a></figcaption>
</figure>
]

???

Source: https://www.tylervigen.com/spurious/correlation/1159_total-number-of-successful-mount-everest-climbs_correlates-with_hotdogs-consumed-by-nathans-hot-dog-eating-competition-champion

---

# GPT 3.5 and DALL·E 3 explainer

.pull-left[
"As the number of successful Mount Everest climbs rises, so does the peak appetite for adventure. This, in turn, creates a sausage-yetis-faction where competitors are relishing the thrill of the challenge like never before, and they're on a roll to claim the title. It's a summit showdown of epic proportions, where each contender is truly reaching their peak performance..."
]

.pull-right[
<figure>
  <img src="img/10/spurious-correlation-ai.jpg" alt="Mount Everest hot dog eating competition image generated by dalle-3" title="Mount Everest hot dog eating competition" width="100%">
</figure>
]

---

# Why not use two y-axes?

You have to choose where the y-axes start and stop, which means...

...you can force the two trends to line up however you want.

---

# It even happens in *The Economist*!

.center[
<figure>
  <img src="img/10/economist-dogs.png" alt="Dog neck size and weight in The Economist" title="Dog neck size and weight in The Economist" width="85%">
</figure>

The revised axes ranges reflect a comparable proportional change
]

???

<https://medium.economist.com/mistakes-weve-drawn-a-few-8cdd8a42d368>

---

# What could we do instead?

<img src="10-slides_files/figure-html/solar-data-facet-1.png" width="100%" style="display: block; margin: auto;" />
]

<img src="10-slides_files/figure-html/solar-data-scatter-1.png" width="100%" style="display: block; margin: auto;" />
]

---

# When are dual y-axes defensible?

When the two axes measure the same thing (e.g., indexing, conversion, etc.)

---

# Visualizing relationships between<br>a numerical and a categorical variable

---

# We already did this! When?

.pull-left[
<img src="10-slides_files/figure-html/listings-facet-1.png" width="100%" style="display: block; margin: auto;" />
]

.pull-right[
<img src="10-slides_files/figure-html/listings-ridgeline-1.png" width="100%" style="display: block; margin: auto;" />
]

---

# Visualizing relationships between<br>two numerical variables

---

# Visualizing correlations

---

# What does "correlation" mean to you?

As the value of X goes up, Y is very / a little / not at all likely to go up (down)

$$
\rho_{X, Y} = \frac{\operatorname{cov}(X, Y)}{\sigma_X \sigma_Y}
$$

Says nothing about *how much* Y changes when X changes

---

# Correlation values

<table>
  <tr>
    <th class="cell-left">$$\rho$$</th>
    <th class="cell-left">Rough meaning</th>
  </tr>
  <tr>
    <td class="cell-left">±0.1–0.3&emsp;</td>
    <td class="cell-left">Weak</td>
  </tr>
  <tr>
    <td class="cell-left">±0.3–0.5</td>
    <td class="cell-left">Moderate</td>
  </tr>
  <tr>
    <td class="cell-left">±0.5–0.8</td>
    <td class="cell-left">Strong</td>
  </tr>
  <tr>
    <td class="cell-left">±0.8–0.9</td>
    <td class="cell-left">Very strong</td>
  </tr>
</table>
]

]

---

# Scatter plots

The humble scatter plot is often the best place to start when studying the association between two variables

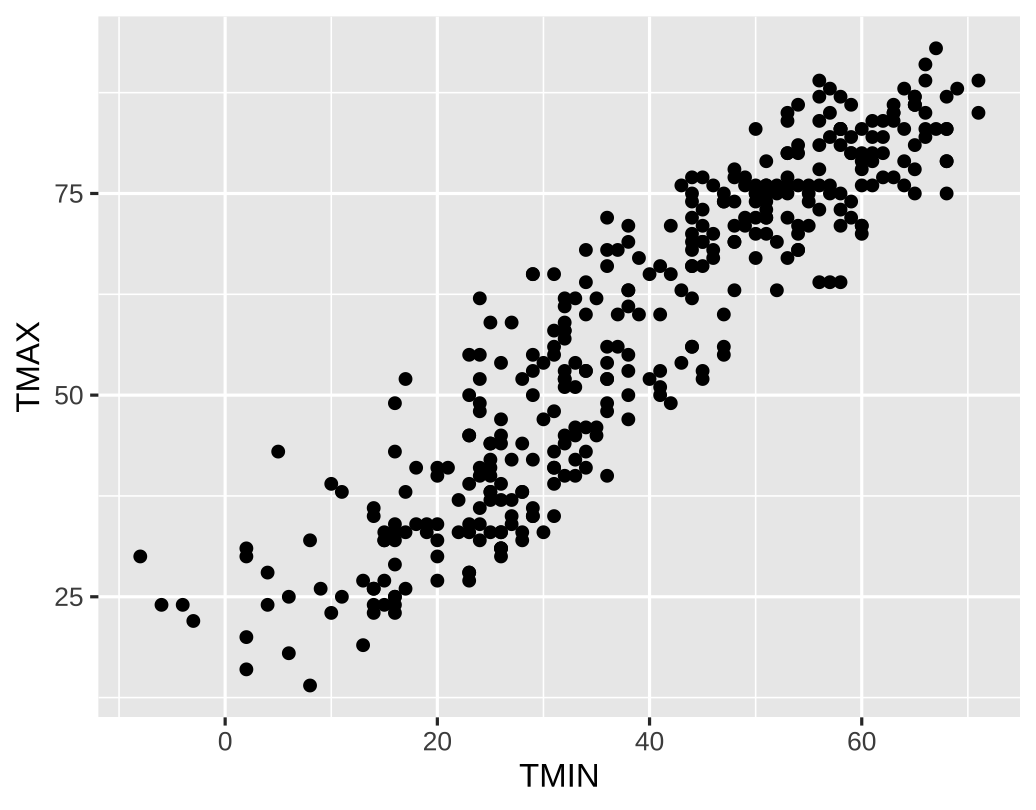

**Example:** max and min temperature in Ithaca each day of the year
  - Do you think they are highly correlated, somewhat correlated, or not at all correlated?
  - What sign do you think this correlation has?
  - How would you make a scatter plot of these data in R?

---

# Scatter plots

``` r
ithaca_weather |>
  ggplot(aes(x = TMIN, y = TMAX)) +
  geom_point()
```

``` r
ithaca_weather |>
* summarize(cor(TMIN, TMAX))
```

```
## # A tibble: 1 × 1
##   `cor(TMIN, TMAX)`
##               <dbl>
## 1             0.919
```

**Strong positive correlation**
]

---

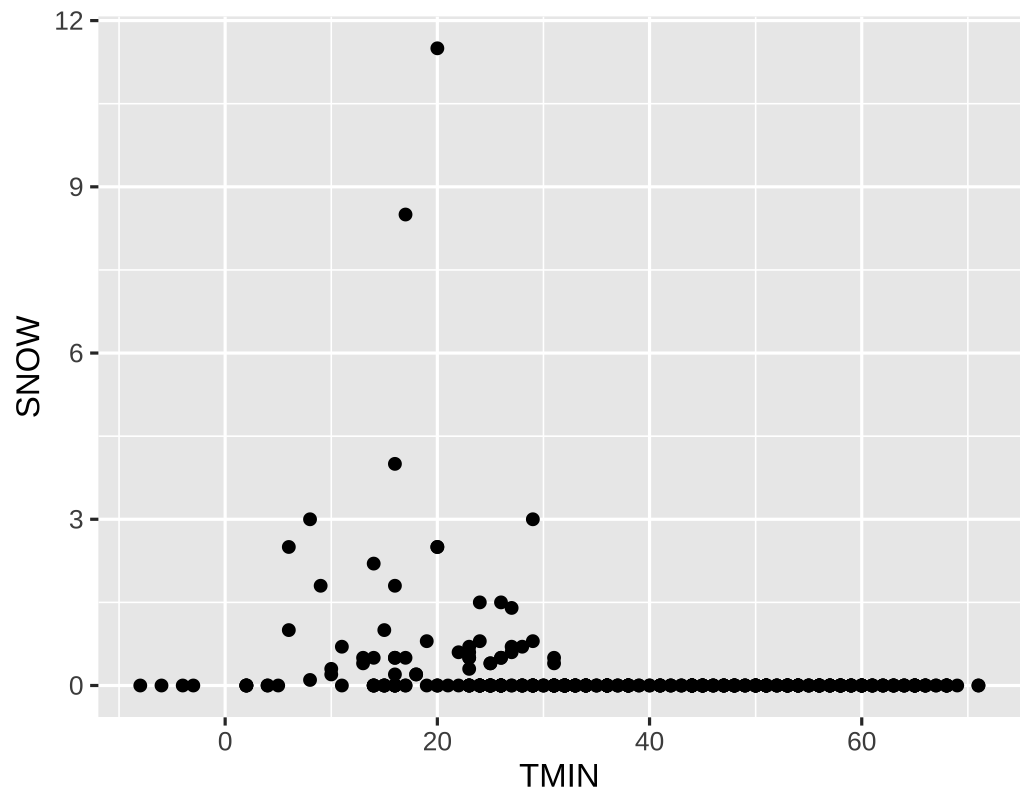

# What about min temp and snowfall?

``` r
ithaca_weather |>
  ggplot(aes(x = TMIN, y = SNOW)) +
  geom_point()
```

``` r
ithaca_weather |>
* summarize(cor(TMIN, SNOW))
```

```
## # A tibble: 1 × 1
##   `cor(TMIN, SNOW)`
##               <dbl>
## 1            -0.239
```

**Weak negative correlation**
]

---
class: inverse, center, middle
name: example-10-1

# example-10-1:<br>relationships-practice.R

---

# Visualizing regressions

---

# Linear regression reminder

$$
y = \beta_0 + \beta_1 x_1 + \varepsilon
$$

<table>
  <tr>

    <td class="cell-center">$y$</td>
    <td class="cell-left">&ensp;Outcome variable (DV)</td>
  </tr>
  <tr>

    <td class="cell-center">$x_1$</td>
    <td class="cell-left">&ensp;Explanatory variable (IV)</td>
  </tr>
  <tr>

    <td class="cell-center">$\beta_1$</td>
    <td class="cell-left">&ensp;Slope</td>
  </tr>
  <tr>

    <td class="cell-center">$\beta_0$</td>
    <td class="cell-left">&ensp;y-intercept</td>
  </tr>
  <tr>

    <td class="cell-center">&emsp;$\varepsilon$&emsp;</td>
    <td class="cell-left">&ensp;Error (residuals)</td>
  </tr>
</table>

---

# Linear regression is just drawing lines

]

]

---

# Building models in R

Base R has some basic modeling tools:

``` r
<MODEL> <- lm(<Y> ~ <X>, data = <DATA>) # use lm to fit simple linear models

summary(<MODEL>) # see model details
```

The `broom` package provides helpful tools for tidying model output:

``` r
library(broom)

# convert model estimates to a data frame for plotting
tidy(<MODEL>)
```

---

# Modeling Airbnb reviews

Let's use some real-world data to explore linear regression

Put yourself in the shoes of an Airbnb host trying to decide how much to invest in improvements across these categories:

.center[
<figure>
  <img src="img/10/airbnb-reviews.png" alt="Airbnb reviews" title="Airbnb reviews" width="100%">
</figure>
]

Let's see how well "accuracy" reviews predict an Airbnb's overall rating

---

# Modeling Airbnb reviews

``` r
review_model <- lm(
  rating ~ accuracy,
  data = reviews
  )
```

Note how we didn't write anything for the `$\beta_0$` or `$\varepsilon$` terms

What do you think the sign on `$\beta_1$` is?

How large do you think `$\beta_1$` is?

]

``` r
review_model
```

```
##
*## Call:
*## lm(formula = rating ~ accuracy, data = reviews)
##
*## Coefficients:
*## (Intercept)     accuracy
*##      0.7590       0.8271
```
]

---

# Modeling Airbnb reviews

``` r
summary(review_model)
```

```
##
*## Call:
*## lm(formula = rating ~ accuracy, data = reviews)
##
## Residuals:
##     Min      1Q  Median      3Q     Max
## -4.8943 -0.0648  0.0608  0.1057  4.2410
##
*## Coefficients:
*##             Estimate Std. Error t value Pr(>|t|)
*## (Intercept) 0.758952   0.017156   44.24   <2e-16 ***
*## accuracy    0.827067   0.003597  229.94   <2e-16 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.2996 on 28159 degrees of freedom
##   (10116 observations deleted due to missingness)
## Multiple R-squared:  0.6525,	Adjusted R-squared:  0.6525
## F-statistic: 5.287e+04 on 1 and 28159 DF,  p-value: < 2.2e-16
```

---

# Modeling Airbnb reviews

``` r
tidy(review_model, conf.int = TRUE)
```

```
## # A tibble: 2 × 7
##   term        estimate std.error statistic p.value conf.low conf.high
##   <chr>          <dbl>     <dbl>     <dbl>   <dbl>    <dbl>     <dbl>
## 1 (Intercept)    0.759   0.0172       44.2       0    0.725     0.793
## 2 accuracy       0.827   0.00360     230.        0    0.820     0.834
```

---

# Interpretation for a continuous variable

$$
y = \beta_0 + \beta_1 x_1 + \varepsilon
$$

On average, a one unit increase in `$x_1$` is *associated* with a `$\beta_1$` change in `$y$`

$$
\text{rating} = \beta_0 + \beta_1 \text{accuracy} + \varepsilon
$$

$$
\widehat{\text{rating}} = 0.76 + 0.83 \times \text{accuracy}
$$
On average, a one unit increase in accuracy rating is associated with 0.83 higher overall rating

**This is easy to visualize: it's a line!**

---

# Visualization of a continuous variable

``` r
tidy(review_model) |>
  select(term, estimate)
```

```
## # A tibble: 2 × 2
##   term        estimate
##   <chr>          <dbl>
## 1 (Intercept)    0.759
## 2 accuracy       0.827
```

$$
\widehat{\text{rating}} = 0.76 + 0.83 \times \text{accuracy}
$$
Note: this is an example where `alpha` helps with overplotting
]

.pull-right[
<img src="10-slides_files/figure-html/review-line-again-1.png" width="100%" style="display: block; margin: auto;" />

]

---

# Visualization of a continuous variable

``` r
tidy(review_model) |>
  select(term, estimate)
```

```
## # A tibble: 2 × 2
##   term        estimate
##   <chr>          <dbl>
## 1 (Intercept)    0.759
## 2 accuracy       0.827
```

$$
\widehat{\text{rating}} = 0.76 + 0.83 \times \text{accuracy}
$$
Note: this is an example where `alpha` helps with overplotting
]

.pull-right[
<img src="10-slides_files/figure-html/review-line-again-again-1.png" width="100%" style="display: block; margin: auto;" />

]

---

# Visualization of a continuous variable

``` r
reviews |>
  ggplot(aes(x = accuracy, y = rating)) +
  geom_point(alpha = 0.25) +
* geom_smooth(
*   method = "lm",   # smoothing function
*   se = FALSE       # omit confidence bands
* )
```
]

.pull-right[
<img src="10-slides_files/figure-html/tidy-review-model-geom_smooth-plot-1.png" width="100%" style="display: block; margin: auto;" />
]

---

# Multiple regression

We're not limited to just one explanatory variable!

$$
y = \beta_0 + \beta_1 x_1 + \beta_2 x_2 + \cdots + \beta_n x_n + \varepsilon
$$
<br>

``` r
review_model_big <- lm(rating ~ accuracy + cleanliness +
                         communication + location +
                         checkin + value,
                       data = reviews)
```

$$
`\begin{aligned}
\widehat{\text{rating}} =& \widehat{\beta}_0 + \widehat{\beta}_1 \text{accuracy} + \widehat{\beta}_2 \text{cleanliness} + \\
&\widehat{\beta}_3 \text{communication} + \widehat{\beta}_4 \text{location} + \\
&\widehat{\beta}_5 \text{checkin} + \widehat{\beta}_6 \text{value}
\end{aligned}`
$$

---

# Multiple regression

We started by estimating this **univariate** (aka **bivariate**) regression model:

$$
\text{rating} = \beta_0 + \beta_1 \text{accuracy} + \varepsilon
$$

Now we are estimating this **multivariate** regression model:

$$
`\begin{aligned}
\text{rating} =& \beta_0 + \beta_1 \text{accuracy} + \beta_2 \text{cleanliness} + \\
&\beta_3 \text{communication} + \beta_4 \text{location} + \\
&\beta_5 \text{checkin} + \beta_6 \text{value} + \varepsilon
\end{aligned}`
$$
--

Why are we doing this? Wasn't it complicated enough already?!

We want to use these data to inform our Airbnb hosting strategy. What are the pros and cons of the two models for this purpose?

---

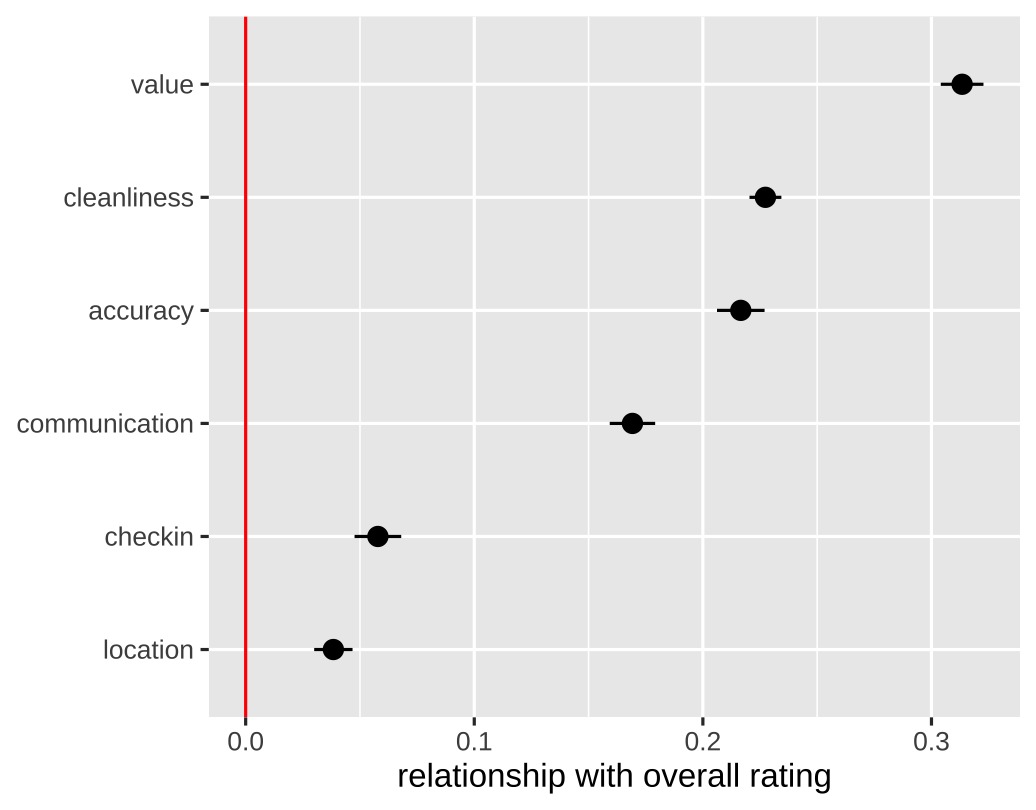

# Multiple regression

Will the coefficient on `accuracy` will be smaller, larger, or the same? Why?

``` r
tidy(review_model_big, conf.int = TRUE)
```

```
## # A tibble: 7 × 7
##   term          estimate std.error statistic   p.value conf.low conf.high
##   <chr>            <dbl>     <dbl>     <dbl>     <dbl>    <dbl>     <dbl>
## 1 (Intercept)    -0.124    0.0178      -6.96 3.43e- 12  -0.159    -0.0892
*## 2 accuracy        0.217    0.00531     40.8  0           0.206     0.227
## 3 cleanliness     0.227    0.00356     63.9  0           0.220     0.234
## 4 communication   0.169    0.00507     33.4  1.45e-239   0.159     0.179
## 5 location        0.0384   0.00428      8.97 3.25e- 19   0.0300    0.0468
## 6 checkin         0.0578   0.00521     11.1  1.37e- 28   0.0476    0.0680
## 7 value           0.313    0.00476     65.8  0           0.304     0.323
```
]

$$
`\begin{aligned}
\widehat{\text{rating}} =& -0.12 + 0.22 \times \text{accuracy} + 0.23 \times \text{cleanliness} + \\
&0.17 \times \text{communication} + 0.04 \times \text{location} + \\
&0.06 \times \text{checkin} + 0.31 \times \text{value}
\end{aligned}`
$$

---

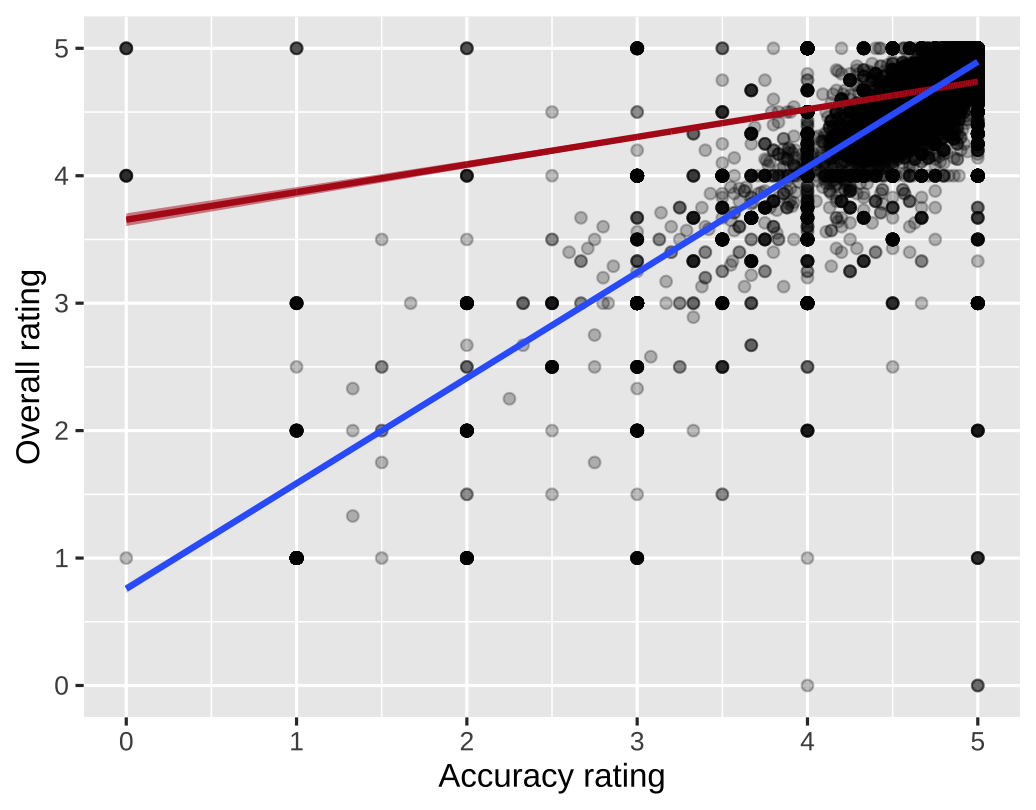

# Interpretation for continuous variables

$$
y = \beta_0 + \beta_1 x_1 + \beta_2 x_2 + \cdots + \beta_n x_n + \varepsilon
$$

***Holding everything else constant***, a one unit increase in `$x_n$` is *associated* with a `$\beta_n$` change in `$y$`, on average

On average, a one unit increase in accuracy rating is associated with 0.22 higher overall rating, holding everything else constant

> On average, a one unit increase in accuracy rating is associated with 0.83 higher overall rating

]

---

# Good luck visualizing all this!

&nbsp;

---

# Main challenges

Each coefficient has its own estimate and standard errors

**Solution:** Plot the coefficients and their errors with a *coefficient plot*

The results change as you move sliders (continuous variables) up and down or flip switches (categorical variables) on and off

**Solution:** Plot the *marginal effects* for the coefficients you're interested in

---

# Coefficient plots

Convert the model results to a data frame with `tidy()`

``` r
# tidy the estimates (reformatting names is not required)
review_coefs <- tidy(
  review_model_big, # get the model's coefficients
  conf.int = TRUE   # include confidence intervals
) |>
  filter(term!="(Intercept)")

review_coefs
```

```
## # A tibble: 6 × 7
##   term          estimate std.error statistic   p.value conf.low conf.high
##   <chr>            <dbl>     <dbl>     <dbl>     <dbl>    <dbl>     <dbl>
## 1 accuracy        0.217    0.00531     40.8  0           0.206     0.227
## 2 cleanliness     0.227    0.00356     63.9  0           0.220     0.234
## 3 communication   0.169    0.00507     33.4  1.45e-239   0.159     0.179
## 4 location        0.0384   0.00428      8.97 3.25e- 19   0.0300    0.0468
## 5 checkin         0.0578   0.00521     11.1  1.37e- 28   0.0476    0.0680
## 6 value           0.313    0.00476     65.8  0           0.304     0.323
```
]

---

# Coefficient plots

Plot the point estimate and confidence intervals with `geom_pointrange()`

``` r
review_coefs |>
  ggplot(aes(x = estimate,
             y = fct_reorder(term, estimate))) +
* geom_pointrange(aes(xmin = conf.low,
*                     xmax = conf.high)) +
* geom_vline(xintercept = 0, color = "red") +
  labs(x = "relationship with overall rating",
       y = NULL)
```

What do you take away from this?

Should this inform where you decide to focus your investment as a host?
]

---

# Marginal effects plots

**Remember we interpret individual coefficients while holding others constant**

We move one slider while leaving all the other sliders and switches alone

**The same principle applies to visualizing a variable's effect**

Plug a bunch of values into the model and find the predicted outcome

Plot the values and predicted outcome

*We will not cover the process of creating marginal effects plots due to time constraints*

---

# Marginal effects plots

How do the multivariate and univariate regression lines compare?

![](10-slides_files/figure-html/mfx-plot-compare-1.png)
]

<span style="color:#3366FF; font-weight:bold">Blue line:</span> univariate

What do you take away from this?

Should this affect how much you invest in accuracy?
]

---

# Stepping back

Which of these plots would be more useful to Airbnb hosts? Why?

---

# Not just OLS!

The same techniques work for pretty much any statistical model R can run

- OLS with high-dimensional fixed effects

- Logistic, probit, and multinomial regression (ordered and unordered)

- Multilevel (i.e., mixed and random effects) regression

- Bayesian models

- Machine learning models

If it has coefficients and/or makes predictions, you can (and should) visualize it!

---
class: inverse, center, middle
name: example-10-2

# example-10-2:<br>regression-practice.R
